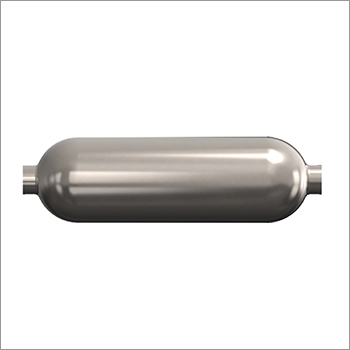

Double Ended High Pressure Sampling Cylinders
Product Details:
- Processing Type Pressure Testing and Sampling
- Material Stainless Steel
- Machine Type Pressure Monitoring and Sampling Equipment
- Model No Customizable
- Application High pressure sampling in industrial processes
- Function Sampling under high pressure conditions
- Usage Industrial applications for gas and liquid sampling
- Click to View more
X
Double Ended High Pressure Sampling Cylinders Price And Quantity
Double Ended High Pressure Sampling Cylinders Product Specifications
- Depends on size and specifications
- Industrial applications for gas and liquid sampling
- Pressure Testing and Sampling
- Pressure Monitoring and Sampling Equipment
- Stainless Steel
- Custom dimensions available
- High pressure sampling in industrial processes
- Sampling under high pressure conditions
- Customizable
Product Description
Technical Specification
| Part | MOC | Capacity (CC) | End Connection | Pressure Rating | Length XDiameter | ||
| (Bar) | psi | ||||||
| SC-100-4 | SS 316 L | 100 | ¼” NPT F | 125 | 1800 | 210 X 48.3 | |
| SC-300-4 | SS 316 L | 300 | ¼” NPT F | 150 | 2150 | 240 X 60.5 | |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 200 | 2850 | 280 X 60.5 | |
| SC-500-2 | SS 316 L | 500 | 1/2” NPT F | 200 | 2850 | 280 X 60.5 | |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 350 | 5000 | 510 X 48.5 | |
| SC-1000-4 | SS 316 L | 1000 | ¼” NPT F | 350 | 5000 | 275 X 88.9 | |
| SC-1000-2 | SS 316 L | 1000 | 1/2” NPT F | 350 | 5000 | 275 X 88.9 | |
