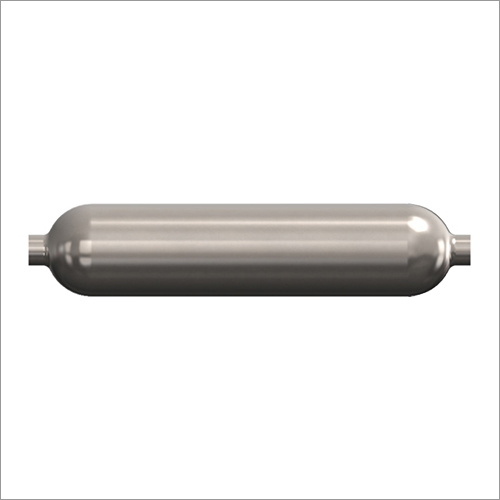

Double Ended Low Pressure Sampling Cylinders
Product Details:
X
Product Description
Technical Specification
| Part | MOC | Capacity (CC) | End Connection | Pressure Rating | Length XDiameter | |
| Bar | Psi | |||||
| (Bar) | psi | | | | | |
| SC-100-4 | SS 316 L | 100 | ¼” NPT F | 20 | 300 | 210 X 48.3 |
| SC-300-4 | SS 316 L | 300 | ¼” NPT F | 20 | 300 | 240 X 60.5 |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 20 | 300 | 280 X 60.5 |
| SC-500-2 | SS 316 L | 500 | 1/2” NPT F | 20 | 300 | 280 X 60.5 |
| SC-500-4 | SS 316 L | 500 | ¼” NPT F | 20 | 300 | 510 X 48.5 |
| SC-1000-4 | SS 316 L | 1000 | ¼” NPT F | 20 | 300 | 275 X 88.9 |
| SC-1000-2 | SS 316 L | 1000 | 1/2” NPT F | 20 | 300 | 275 X 88.9 |
Transformer Oil Sampling Bottles
| Sr. No. | Volume (ML) | Length (MM) | Diameter (MM) | Weight Kgs |
| 1 | 500 | 300 | 89 | 1.5 |
| 2 | 1000 | 400 | 89 | 1.9 |
| 3 | 1500 | 500 | 89 | 1.5 |
| 4 | 2000 | 570 | 89 | 1.9 |
| 5 | 2500 | 670 | 89 | 1.5 |
