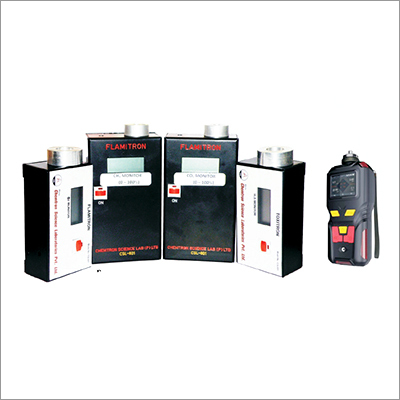

Single Gas Portable Gas Analyser
Product Details:
- Material ABS
- Equipment Type Portable Gas Analyser
- Usage Industrial
- Dimension (L*W*H) 160 x 70 x 45 Millimeter (mm)
- Weight 280 Kilograms (kg)
- Click to View more
X
Single Gas Portable Gas Analyser Price And Quantity
- 1 Piece
Single Gas Portable Gas Analyser Product Specifications
- 160 x 70 x 45 Millimeter (mm)
- Portable Gas Analyser
- Industrial
- 280 Kilograms (kg)
- ABS
Product Description
Made with best in class raw material, this Single Gas Portable Gas Analyser is the right choice to use for recognizing the concentration of identified gases in an atmosphere. This process is beneficial to use for improving the safety. It is produced by using high quality required materials with the help of latest technology under the supervision of our experts. Offered Single Gas Portable Gas Analyser is high in quality and excellent in performance. Reach out to us for getting more information on this product.
Technical Specification
|
Display |
1 x 4 Alphanumeric |
|
Detection method |
Direct exposure |
|
Datalogging |
NO |
|
Detection accuracy |
Less than 1% (F.S) |
|
Linearity |
Less than 2% |
|
Repeatability |
Less than 2% |
|
Alarm mode |
NO |
|
Response time: T90 |
< 20 seconds |
|
Recovery time |
< 30 seconds |
|
Operating power |
DC 9 V |
|
Battery capacity |
9VDC, Recharchable Zinc Carbon |
|
Charger |
Charger adapter |
|
Working temperature |
- 40 to +70C |
|
Working humidity |
0-85% RH |
|
Sample gas temperature |
-40C to C20+70C |
|
Explosion-proof type |
NO |
|
Protection degree |
NO |
|
Dimension |
160 x 70 x 45mm (LxWxH) |
|
Weight |
280g |
|
Standby hours |
12 |
|
Time to fully charge |
2 hours |
|
Sr. No. |
Detection Gas |
Range |
Resolution |
Accuracy |
Sensor Type |
|
1. |
Ammonia (NH3) |
0 - 20 ppm |
0.1 ppm |
+-/ 1 % FS |
Electrochemical |
|
2. |
Ammonia (NH3) |
0 - 200 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
3. |
Chlorine (Cl2) |
0 - 200 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
4. |
Ethylene (C2H4) |
0 - 2000 ppm |
1 ppm |
+-/ 2 % FS |
Electrochemical |
|
5. |
Ethylene Oxide (C2H4O) |
0 - 200 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
6. |
Hydrogen (H2) |
0 - 2000 ppm |
1 ppm |
+-/ 2 % FS |
Electrochemical |
|
7. |
HydrogenSulphide (H2S) |
0 - 2000 ppm |
1 ppm |
+-/ 2 % FS |
Electrochemical |
|
8. |
Hydrogen Chloride (HCL) |
0 - 200 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
9. |
Nitrogen Monoxide |
0 - 2000 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
10. |
Nitrogen Dioxide (NO2) |
0 - 200 ppm |
1 ppm |
+-/ 1 % FS |
Electrochemical |
|
11. |
Oxygen (O2) |
0 - 30 % |
0.1 %+-/ |
3 % FS |
Electrochemical |
|
12. |
Sulphur Dioxide (SO2) |
0 - 1000 |
1 ppm |
+-/ 2 % FS |
Electrochemical |
