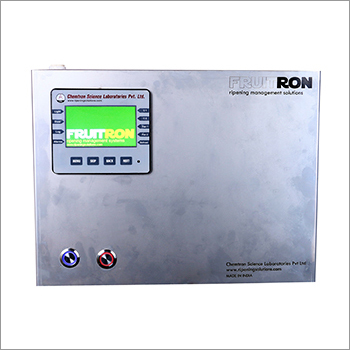

Four Room PLC Ripening System
Product Details:
- Model No Four Room
- Processing Type Automated
- Material Stainless Steel
- Machine Type PLC Controlled
- Application Food Industry
- Function Ripening
- Usage Fruit Ripening
- Click to View more
X
Four Room PLC Ripening System Price And Quantity
Four Room PLC Ripening System Product Specifications
- Four Room
- Customizable
- Fruit Ripening
- Stainless Steel
- PLC Controlled
- Ripening
- Food Industry
- Automated
- Varies with Configuration
Product Description
Technical Specification
| Parameter | Monitor | Control |
| Temperature | Ambient Temperature with range 0 to 50degC. | One control output to control refrigeration contactor. |
| Can operate solenoids for Ammonia based refrigeration. | | |
| Relative Humidity | Ambient RH between 10 to 98 % | Operates humidifiers which are controlled by sensor feedback and hysteresis logic. |
| Ethylene | Measures Ethylene in the range 0 – 200 ppm. | OperatesGas Dispensing Unitsthat releases desired Ethylene into the ripening chambers. |
| Carbon Dioxide | Measures CO2 in the range 0 – 3.2%. | Operates CO2 and fresh air dampersto remove the excess CO2 build up in the chamber. |
