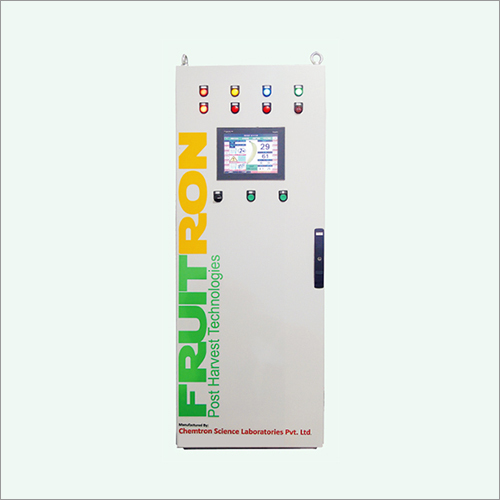

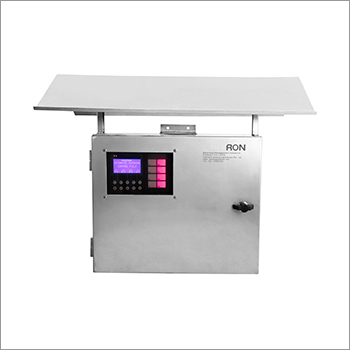

PLC Based Automatic Ripening System
Product Details:
- Machine Type Automatic Ripening System
- Processing Type Automatic
- Material Stainless Steel
- Application Ripening process for fruits
- Function Automate fruit ripening process
- Usage Industrial usage for controlled ripening
- Dimension (L*W*H) Compact design dimensions not specified
- Click to View more
X
PLC Based Automatic Ripening System Price And Quantity
PLC Based Automatic Ripening System Product Specifications
- Compact design dimensions not specified
- Ripening process for fruits
- Automate fruit ripening process
- Stainless Steel
- Automatic Ripening System
- Automatic
- Industrial usage for controlled ripening
Product Description
Technical Specification
| Parameter | Monitor | Control |
| Temperature | Ambient Temperature with range 0 to 50 degC. Pulp Temperature (upto 4 probes) which can be inserted into the fruit. | Controls up to 2 indoor units and 2 outdoor units. |
| Can operate solenoids for Ammonia based refrigeration. | | |
| Relative Humidity | Ambient RH between 10 to 98 % | Operates humidifiers which are controlled by sensor feedback and hysteresis logic. |
| Ethylene | Measures Ethylene in the range 0 – 200 ppm. | Operates Gas Dispensing Unitsthat releases desired Ethylene into the ripening chambers. |
| Carbon Dioxide | Measures CO2 in the range 0 – 3.2%. | Operates CO2 and fresh air dampersto remove the excess CO2 build up in the chamber. |
